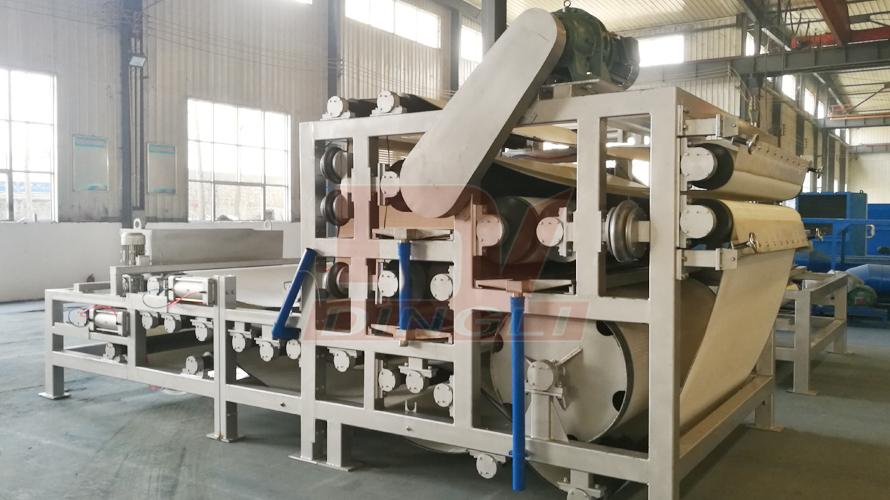

DL Series Belt dehydrator (belt filter press) is a new type of dehydration device which is developed for many years aiming at the property of industrial sludge. It successfully absorbs the advanced technology of filter press at home and abroad. It is particularly suitable for the dehydration of slurry, paper pulp sludge, chemical sludge, ceramic factory sludge, dregs, sewage sludge, municipal sludge, and others.
It has the following traits: continuous production, good dehydrated effect, low power consumption, low noise, convenient operation and maintenance. its dewatering effect ranks the country's leading level.Belt dehydrator is mainly consist of: Main body (dehydrator), air compressor, air processor, electric control device, net-washing water filter. The main body is composed of frame, hopper, filter mesh, tensioning device, adjusting device, driving systems, scraper, all kinds of bearing and rollers, waste water tanks, net-washing devices.
This dehydrator product works through appropriate preprocessing, gravity dehydration and mechanical dehydration, removing the moisture and discharge the processed materials as filter cake. In the process of filter processing, wet materials on the belt pass gravity dehydration zone and belt roller dehydration zone, where they are quickly dehydrated. The shortening and decreasing contact angle ensures the best combination of pressure and shear.
1. Our dehydrator products are suitable for high-moisture materials, which can remove 20% to 30% moisture in the material. The moisture content of processed materials is less than 60% (may vary due to different the material).
2. This product adopts mechanical dehydration method, greatly reducing the energy consumption in the process of drying material.
3. Belt dehydrator is simple and operated easily. The maintenance is convenience.
4. Stable working states and no extra operator needed.
Model | Belt width (mm) | Effective belt area(㎡) | Capacity(m³/h) | Raw material moisture content(%) | Belt Moving Rate (m/min) | Motor Power(KW) | Water Flow Rate (m³/h) | Weight (kg) | Size(mm)(L×W×H) |
---|---|---|---|---|---|---|---|---|---|
DLDT1500 | 1500 | 40.4 | 4--10 | 66-88 | non-stage adjusting,common working rate is 1.3-8.5 | 4 | 8--12 | 4700 | 5150X2326X2650 |
DLDT2000 | 2000 | 53.8 | 6--15 | 4 | 12--18 | 5800 | 5150X2826X2650 | ||
DLDT2500 | 2500 | 67.3 | 9--18 | 5.5 | 18—22 | 4250 | 5150X3326X2650 |
