Paper Pulp Dryer

  • 【Capacity】: 30-300 t/d
  • 【Dried Material Moisture】:<12%

【Application】:Sludge, pulp sludge, etc.

Introduction & Principle

"Pulp" here specifically refers to the viscous substance formed by soaking, removing impurities, breaking, pulping, filtering, and dehydrating recycled waste cartons, book paper, newspapers, etc. It is composed of a variety of fibers. After drying, it can be used to produce recycled paper, phenolic resin, home decoration packaging materials, as a culture medium for edible fungi, and even processed into cattle and sheep feed. It has a wide range of uses and is a very important recycled material. resource.

The difficulty in drying "pulp" lies in temperature control. Because when the "pulp" is dried to a certain extent, it becomes a floc state that is easy to burn. If the temperature is too low, it will affect the drying speed and increase the drying cost. If the temperature is too high, it will easily lead to fiber plasticization and even fire. burn, thereby losing its use value. Our three-layer rotary pulp dryer can control the drying temperature below 200°C.


WhatsApp/Wechat:+86 15670626070
Model Capacity(t/d) Moisture content of raw material(%) Drop moisture content(%) Drying Temperature (℃) Total installation power(kw) Total Weight (kg) Spatial footprint(m²)
DLNG1412 30 55-70% <20%(adjustable) 850±100℃ 65 25000 6m*18m
DLNG1612 50 115 48000 6m*18m
DLNG2012 80 138 67000 8m*24m
DLNG2512 100 170 85000 10m*24m
DLNG2812 120 240 92000 10m*30m
DLNG3012 150 320 110000 10m*36m
DLNG3212 180 450 150000 10m*36m
DLNG3412 200 680 265000 10m*48m


E-mail us: dingli@dlbio-dryer.com

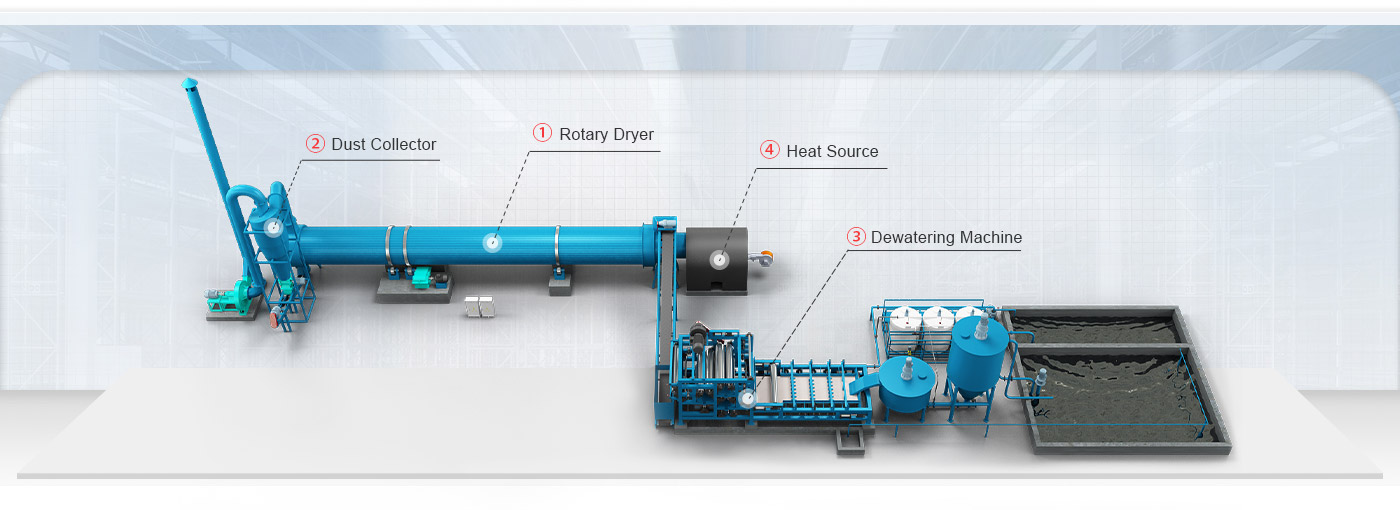

Paper Pulp Dryer结构图 Paper Pulp Dryer结构图
