Coconut Shell Continuous Carbonization Furnace

  • 【Capacity】: 0.6-0.8 t/h
  • 【Dried Material Moisture】:

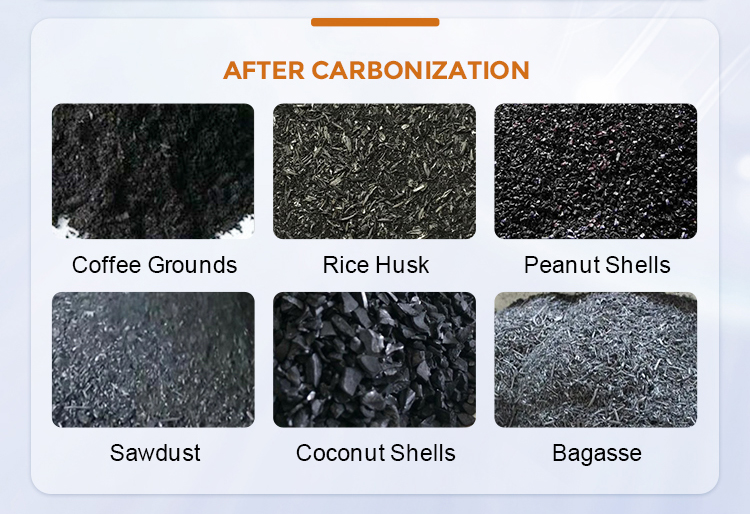

【Application】:suitable for agricultural and forestry biomass charring making. Such as coconut shells, coffee grounds, peanut shells, bagasse, walnut shell, sawdust, rice husk, bamboo, etc.

Introduction & Principle

Biomass two-layer continuous drum carbonization machine is a special carbonization equipment which can carbonize coconut shell, walnut shell, apricot shell, hemp pole, sawdust, sawdust, rice husk, bamboo, eucalyptus, mushroom residue, medicine residue, furfural residue, coffee residue, palm shell, peanut shell and sunflower seed shell in the carbonization machine under high temperature conditions.


charcoal making machine

The carbonization machine adopts the advanced technology of recovery, purification and circulating combustion of carbon monoxide, methane, ethane and other combustible gases produced in the process of carbonization. It solves the problem of environmental pollution caused by thick smoke which produced by ordinary carbonization furnace in the carbonization project, and solves the heat energy problem required by the equipment, fully realizes self-sufficiency, and improves the continuity and economy of the equipment We should make full use of the agricultural and forestry residues to turn waste into treasure and contribute to the greening environment.

Parameters

WhatsApp/Wechat:+86 15670626070
Model diameter(mm) The drum length(m) host RPM(revolutions per minute) Carbon capacity(kg/h) Power(kw) Dimension(m)
DLTJ1210 1200 10 2-5 200-300 40-50 11*2.0*2.8
DLTJ1410 1400 10 2-4 400-500 50-70 11*2.2*3.0
DLTJ1612 1600 12 2-4 600-800 70-80 11*2.5*3.3
DLTJ1912 1900 12 2-3 900-1100 90-110 13.5*2.8*3.6
DLTJ2212 2200 12 2-3 1200-1500 110-130 13.5*3.0*4.0
Model Inner layer diameter(mm) Outer layer diameter(mm) The drum length(m) Carbon capacity(kg/h) Power(kw) Dimension(m)
DLTJ1610/2 1000 1600 10 600-800 40-50 11*2.0*2.8
DLTJ1810/2 1200 1800 10 700-1000 50-70 11*2.2*3.0
DLTJ2010/2 1400 2000 10 1100-1300 70-80 11*2.5*3.3
DLTJ2312/2 1600 2300 12 1500-2000 90-110 13.5*2.8*3.6
DLTJ2512/2 1800 2500 12 2200-2500 110-130 13.5*3.0*4.0
DLTJ2912/2 2200 2900 12 2500-3000 130-150 13.5*3.5*4.5
DLTJ3212/2 2500 3200 12 3200-3800 160-180 13.5*3.8*5.0
DLTJ3612/2 2900 3600 12 4000-4500 200-230 13.5*4.2*5.5

Configuration

E-mail us: dingli@dlbio-dryer.com
Coconut Shell Continuous Carbonization Furnace结构图 Coconut Shell Continuous Carbonization Furnace结构图
